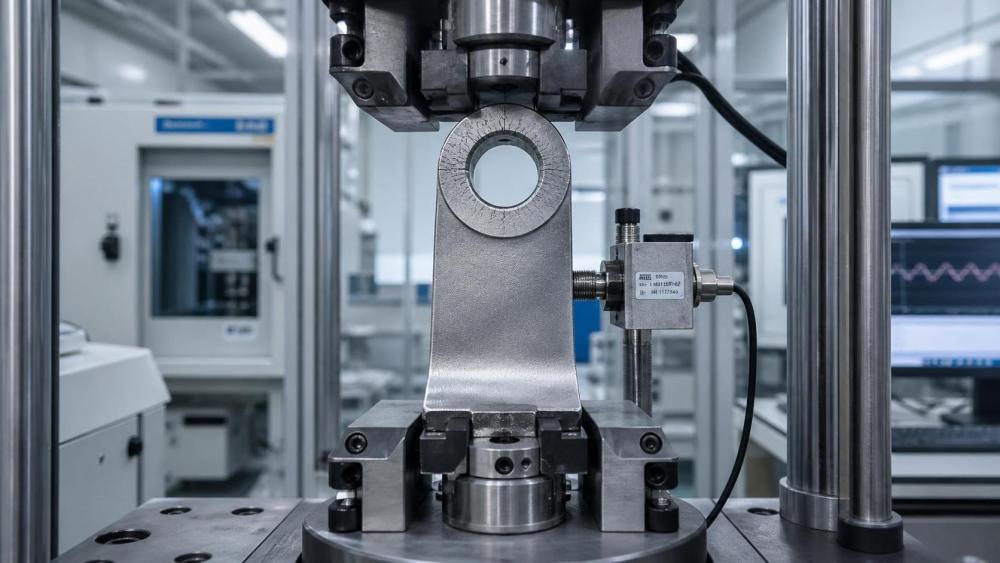

Fatigue Life Is a Crack Management Problem, Not a Static Strength Check

For an aerospace titanium component, fatigue analysis is worth the effort whenever repeated load, vibration, thermal cycling, or local assembly stresses can accumulate over a service interval. A high yield strength or an acceptable ultimate tensile result does not establish a useful crack-life prediction. It only describes one part of the material response before a flaw has formed or grown.

The practical question is usually more specific: given the geometry, material condition, loading spectrum, manufacturing route, and inspection capability, how many cycles are available before a crack reaches a size that is no longer acceptable? The answer may support a safe-life replacement interval, a damage-tolerance inspection interval, or a redesign of a local feature. It cannot be taken reliably from a generic S-N curve alone.

Titanium alloy fatigue analysis therefore has to connect three different realities: how and where cracks initiate, how an existing crack propagates under the actual stress spectrum, and how confidently the inspection system can detect the crack before structural capability is compromised. Leaving out any one of these can make a formally correct calculation misleading in service.

Separate Crack Initiation From Crack Propagation

Fatigue life is often presented as a single number, but aerospace structures rarely behave that simply. In a smooth laboratory specimen, much of the measured life may be consumed before a detectable crack develops. In a component with a fastener hole, fretting contact, machined transition, weld repair, or geometric notch, a small crack can begin much earlier. The propagation phase may then control the maintenance decision.

This distinction matters especially for titanium alloys because performance is sensitive to material condition and local surface integrity. A Ti-6Al-4V forging, plate, bar product, or additively manufactured part may share a nominal alloy designation while showing different fatigue behavior due to texture, alpha-beta morphology, residual stress, defect population, and heat treatment. A test result is useful only when those conditions are reasonably representative of the production article.

For low-cycle applications, such as highly loaded engine or airframe features subjected to major flight-cycle excursions, strain-controlled testing can be appropriate because plastic strain at the critical location may govern crack initiation. For a component that experiences a large number of lower-amplitude cycles, stress-controlled S-N data may better describe the initiation phase. Neither approach replaces fracture-mechanics analysis when the design philosophy assumes that small flaws can exist.

Crack-growth analysis begins with an initial flaw assumption and estimates the increment of crack extension per cycle, commonly expressed as da/dN against the stress-intensity-factor range, Delta K. The familiar Paris-law region can be useful for stable mid-range growth, but it is not a complete model. Near-threshold behavior, high-load excursions, changing stress ratios, overload retardation, and final fast fracture all require separate treatment. A life estimate that applies a single straight-line growth relationship across the whole crack path can be unconservative or needlessly restrictive.

The Inputs That Most Often Change the Answer

A fatigue calculation becomes credible through the quality of its inputs, not through the apparent sophistication of the software model. Technical evaluators should be cautious when a proposal contains detailed finite-element contours but relies on nominal material data, idealized surfaces, or an assumed constant-amplitude load history.

Local stress rather than nominal stress

Cracks usually begin where the local stress field is most severe: a bore edge, fillet, spline root, lug transition, fastener interface, or contact boundary. The local condition depends on geometry, assembly preload, interference fit, bearing load, contact slip, and residual stress. A nominal stress multiplied by a handbook stress-concentration factor may be suitable for an early screen, but it is often insufficient for a release decision involving a critical detail.

Finite-element analysis should resolve the feature that drives the crack path and avoid artificial singularities being treated as physical stress. The model also needs realistic constraints and load transfer. In bolted titanium joints, for example, joint preload and friction can materially alter the load carried by the hole and the location where damage initiates. In a rotor or blade attachment, contact pressure and local fretting can matter as much as the remote cyclic load.

Surface condition and manufacturing damage

Surface finish is a fatigue variable, not a cosmetic specification. Machining marks, grinding damage, tool wear, burrs, recast layers from thermal processes, and inappropriate blending can create local initiation sites. Titanium is particularly susceptible to process-induced damage when machining parameters, coolant practice, or finishing operations generate tensile residual stress or surface tearing.

Conversely, compressive residual stress introduced by a controlled process such as shot peening, laser shock peening, or cold expansion can delay surface-crack initiation and early growth. The benefit cannot simply be assumed from the process name. Coverage, intensity, geometry, post-processing, thermal exposure, and possible relaxation during service all affect whether the intended residual-stress profile remains relevant over life.

Microstructure and lot representativeness

Titanium alloy fatigue behavior is influenced by grain size, crystallographic texture, phase morphology, interstitial content, and the thermal and mechanical history of the product. In alpha-beta alloys, transformed-beta structure, primary-alpha distribution, and the condition created by solution treatment and aging can affect crack initiation and growth resistance. A mill certificate confirming chemistry and tensile properties does not establish that a data set from a different product form or heat-treatment condition is transferable.

For a structural assessment, the material pedigree should identify product form, forging reduction or plate direction where relevant, heat treatment, and the location from which test coupons are taken. Directionality deserves particular attention for wrought product. A crack propagating through a component in a direction not represented by the available data can encounter a different microstructural response than the one assumed in the analysis.

Environment and temperature

Temperature, humidity, salt exposure, and dwell time can alter fatigue behavior. Titanium offers strong corrosion resistance in many environments, but that should not be confused with immunity to environment-assisted cracking or corrosion-fatigue effects in every joint design and operating condition. Fretting interfaces, galvanic couples, contaminated surfaces, and elevated-temperature dwell cycles can create mechanisms that are absent from room-temperature laboratory tests.

Aerospace structures also encounter variable thermal fields. Thermal gradients may introduce secondary stresses, change fit conditions, and relax residual stresses. When the operating envelope differs materially from the test temperature, the assessment should establish whether the available crack-growth and initiation data remain applicable rather than applying a generic correction factor without a physical basis.

Load Spectrum Defines Whether the Model Is Useful

Constant-amplitude tests are essential for generating controlled material data, but aircraft components do not operate under constant amplitude. A representative spectrum should account for maneuver loads, gust response, ground handling, pressurization where applicable, engine-order vibration, start-stop events, and infrequent high-load events that may dominate damage. The sequence of those events also matters.

High-load cycles can accelerate crack growth directly, yet they can also produce local plasticity that changes subsequent growth behavior. The effect depends on crack size, stress ratio, material condition, and load sequence. Simple linear damage accumulation may be suitable for a preliminary initiation estimate, but it should not be treated as proof of a crack-propagation life under a complex spectrum.

The stress ratio, commonly written as R = Kmin/Kmax or as the ratio of minimum to maximum stress, is another frequent source of error. Tensile mean stress generally increases the tendency for a crack to remain open and can accelerate growth relative to a more compressive cycle with the same nominal range. Residual stress from machining, peening, cold work, or assembly can alter the effective stress ratio at the crack tip. A spectrum model that ignores those conditions may misrepresent both initiation and propagation.

Where detailed operational loading is unavailable, the engineering task is to define conservative but defensible bounding cases and show how sensitive the crack-life result is to those assumptions. A narrow predicted-life margin is not meaningful if modest changes in spectrum severity, preload, or starting flaw size produce a large shift in the result.

Data Selection: Match the Test to the Decision

Published titanium fatigue data can support material down-selection and early feasibility work. They become less reliable when used as direct substantiation for a finished aerospace part. The test data should match the expected failure mode as closely as practical: alloy and heat treatment, product form, orientation, environment, stress ratio, loading frequency, specimen geometry, and surface condition all influence applicability.

Standards provide a common language for obtaining and reporting fatigue information, but they do not automatically make results interchangeable. ASTM E466 is widely used for force-controlled constant-amplitude axial fatigue testing, while ASTM E647 addresses fatigue crack-growth-rate measurement. Strain-controlled fatigue practice and fracture-toughness methods have their own relevant standards. Aerospace qualification also commonly depends on customer, airworthiness, and program-specific requirements that define specimen selection, allowable development, statistical treatment, and configuration control.

The useful question is not whether a report cites a standard. It is whether the specimen preparation, test environment, loading ratio, crack-measurement method, and data-reduction procedure support the exact design decision being claimed.

Initial Flaw Size Cannot Be Chosen for Convenience

Damage-tolerance analysis needs an initial flaw, often referred to as an equivalent initial flaw size. This is one of the most consequential assumptions in the model. Selecting a very small flaw can create an attractive life prediction, but it may not reflect manufacturing capability, hidden defect risk, assembly damage, or the sensitivity of the planned inspection method.

The assumed flaw should have a clear relationship to the component's likely defect population and inspection philosophy. Surface-breaking cracks at a hole differ from embedded material discontinuities; their detectability and stress-intensity solutions differ as well. A part made from a closed-die forging, machined from plate, joined by fasteners, or built through a powder-based process presents different credible flaw scenarios. Treating all of them with one generic initial crack is a weak basis for evaluation.

Inspection planning must be integrated with the crack-growth model. An inspection interval has value only when the method can reliably find a crack before it grows from its assumed detectable size to the critical size. The assessment should account for access, scan coverage, geometry, coating removal, surface roughness, and the difference between a laboratory demonstration and a field inspection performed on an installed structure.

Residual Strength Sets the End Point

Crack-growth life should not end at an arbitrary crack length. It ends when the remaining ligament can no longer support the required load case with the required margin. Residual-strength assessment therefore links crack size to fracture resistance, section geometry, load redistribution, and the relevant limit or ultimate load condition.

For titanium structures, fracture behavior can depend on thickness, orientation, temperature, and loading rate. A simple plane-stress or plane-strain assumption may not describe the actual component. The crack shape may also evolve as it grows through a hole corner, along a surface, or across a thickness transition. Analytical stress-intensity solutions are useful when their assumptions fit the geometry; otherwise, a validated numerical method may be needed.

A common weak practice is to calculate crack-growth life without separately confirming the critical crack size. That produces a duration without demonstrating structural consequence. The two calculations should be traceable to one another: the growth model predicts when the crack reaches a particular state, and the residual-strength model explains why that state is the governing limit.

A Practical Review Sequence for Technical Evaluators

Before accepting a fatigue-life claim for an aerospace titanium component, review the evidence in the order that exposes assumptions early:

• Confirm the exact alloy, product form, heat treatment, orientation, and manufacturing route represented by the fatigue data.
• Identify the critical location from local stress, strain, contact, and residual-stress conditions rather than from nominal load alone.
• Check whether the load spectrum represents the intended mission, including rare but structurally important events and mean-stress effects.
• Separate initiation life from propagation life and establish which phase governs the maintenance or certification decision.
• Review the initial flaw assumption, crack geometry, crack-growth model, and the source of the stress-intensity solution.
• Verify that residual strength at the projected critical crack size has been assessed for the appropriate structural load case.
• Connect inspection interval and method capability to the calculated detectable-to-critical crack-growth period.
• Assess whether production changes, surface finishing, repair methods, or supplier substitutions could invalidate the original substantiation.

The strongest fatigue substantiation is not the one with the longest calculated life. It is the one in which the material condition, local feature, mission spectrum, flaw assumption, and inspection strategy are consistent with each other. For titanium aerospace structures, that consistency determines whether crack-life prediction becomes a usable engineering control or merely a favorable number generated from incomplete assumptions.
